    LENOX METALMAX ™
    next
    next

    LENOX METALMAX

    New alternative to abrasive cut-off wheels.

    1,000+ cuts:
    MetalMax delivers 1,000 or more cuts with no need for wheel changes. That is 30 times longer life than thin bonded cut-off wheels.*

    Long Life:
    Advanced diamond technology provides extreme durability in metal cutting applications, leading to increased productivity, reduced downtime, and a lower cost per cut compared to thin bonded cut-off wheels.

    Diameter retention:because LENOX MetalMax is made with diamonds, it doesn't get smaller. The cutting depth stays the same throughout its life, meaning better control, reach and precision.

    Less dust residue:
    with LENOX MetalMax there is less odor and dust residue as the wheel does not wear down like bonded abrasives. Sparks originate only from the material being cut.

    One wheel, multiple materials:One wheel, multiple materials: MetalMax is recommended for multiple types of metal including steel, sheet metal, stainless steel, rebar, cast iron, aluminum**and non-ferrous metals.

    LENOX MetalMax is designed for use in the same power tools as bonded abrasive wheels, at the same RPMs and feed forces. No changes in operating settings are required. Use LENOX MetalMax as you would a bonded abrasive wheel.

    *Average performance for 4.5" inch wheel in 1" carbon steel square tube vs thin bonded abrasive cut-off wheels.
    **When cutting aluminum, it is recommended to apply cutting wax or other type of saw lubricant to avoid chip welding.

    Specifications

    PRODUCT NUMBER DIAMETER MM DIAMETER INCH THICKNESS ARBOR OPTIONAL ARBOR ADJUSTMENT POWER TOOL TYPE

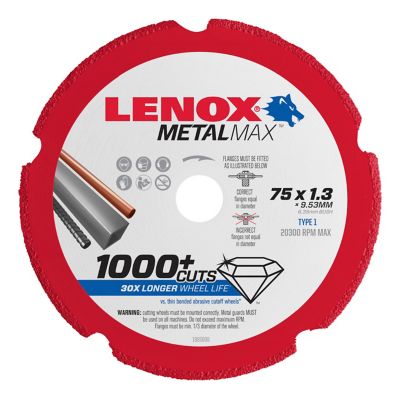

    1985008 75 3 1.3 9.52 1/4" Die Grinder
    1985009 100 4 1.3 16 - Angle Grinder
    1985010 115 4 1/2 1.3 22.23 - Angle Grinder
    1985492 125 5 1.3 22.23 - Angle Grinder
    1985493 150 6 1.3 22.23 - Angle Grinder
    1985494 180 7 1.6 22.23 20/16 Angle Grinder
    1985495 200 8 1.6 35 25/22/16 Angle Grinder / Circular Saw
    1985496 230 9 1/4 2.1 35 25/22/16 Angle Grinder
    1985497 307 12 3.2 25.4 - Cut Off Saw / Chop Saw

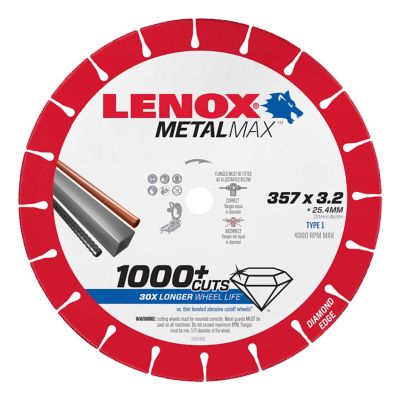

    1985498 357 14 3.2 25.4 20MM Cut Off Saw / Chop Saw
    1985499 307 12 3.7 25.4 20MM Demolition Saw / Petrol Saw
    1985500 357 14 3.7 25.4 20MM Demolition Saw / Petrol Saw
