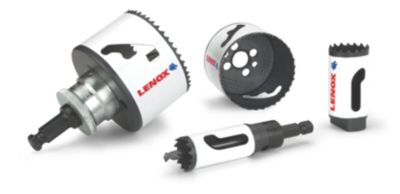

    SPEEDSLOT BI-METAL HOLE SAWS
    Play Video

    SPEEDSLOT BI-METAL HOLE SAWS

    GO FROM UNPRODUCTIVE TO UNPLUGGED

    PLUG REMOVAL AS EASY AS 1-2-3
    SPEED SLOT® features a staircase design for easy plug removal



    UP TO 2X LIFE IN METAL CUTTING
    Enhanced tooth geometry, a thin kerf design, and an advanced coating contribute
    to the efficiency of the cutting process

    Specifications

    DIAMETER      1 PER clam      PIPE TAP PIPE ENTRANCE USE ARBOR
    INMMPROD NO IN MM IN MM SNAP-BACKSTANDARD
    9/16 14 30009-9L — — — — 5L 1L, 4L or 5L
    5/8 16 30010-10L — — — — 5L 1L, 4L or 5L
    11/16 18 30011-11L — — — — 5L 1L, 4L or 5L
    3/4 19 30012-12L 1/2 12.7 3/8 9.5 5L 1L, 4L or 5L
    25/32 20 3009820-MMHS — — — — 5L 1L, 4L or 5L
    13/16 21 30013-13L — — — — 5L 1L, 4L or 5L
    7/8 22 30014-14L 3/4 19.1 1/2 12.7 5L 1L, 4L or 5L
    15/16 24 30015-15L — — — — 5L 1L, 4L or 5L
    1 25 30016-16L — — — — 5L 1L, 4L or 5L
    1-1/16 27 30017-17L — — — — 5L 1L, 4L or 5L
    1-1/8 29 30018-18L 1 25.4 3/4 19.1 5L 1L, 4L or 5L
    1-3/16 30 30019-19L — — — — 5L 1L, 4L or 5L
    1-1/4 32 30020-20L — — — — 2L, 6L 2L, 3L or 6L
    1-5/16 33 30012-12L — — — — 2L, 6L 2L, 3L or 6L
    1-3/8 35 30022-22L — — 1 25.4 2L, 6L 2L, 3L or 6L
    1-7/16 37 30023-23L — — — — 2L, 6L 2L, 3L or 6L
    1-1/2 38 30024-24L 1-1/4 31.8 — — 2L, 6L 2L, 3L, 6L or 7L
    1-9/16 40 30025-25L — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-5/8 41 30026-26L — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-11/16 43 30027-27L — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-3/4 45 30028-28L 1-1/2 38.1 1-1/4 31.8 2L, 6L 2L, 3L, 6L or 7L
    1-13/16 46 30029-29L — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-7/8 48 30030-30L — — — — 2L, 6L 2L, 3L, 6L or 7L
    2 51 30032-32L — — 1-1/2 38.1 2L, 6L 2L, 3L, 6L or 7L
    2-1/16 52 30033-33L — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-1/8 54 30034-34L — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-1/4 57 30036-36L 2 50.8 — — 2L, 6L 2L, 3L, 6L or 7L
    2-3/8 60 30038-38L — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-1/2 64 30040-40L — — 2 50.8 2L, 6L 2L, 3L, 6L or 7L
    2-9/16 65 30041-41L — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-5/8 67 30042-42L 2-1/2 63.5 — — 2L, 6L 2L, 3L, 6L or 7L
    2-11/16 68 30043-43L — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-3/4 70 30044-44L — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-7/8 73 30046-46L — — — — 2L, 6L 2L, 3L, 6L or 7L
    3 76 30048-48L — — 2-1/2 63.5 2L, 6L 2L, 3L, 6L or 7L
    3-1/8 79 30050-50L — — — — 2L, 6L 2L, 3L, 6L or 7L
    3-1/4 83 30052-52L 3 76.2 — — 2L, 6L 2L, 3L, 6L or 7L
    3-3/8 86 30054-54L — — — — 2L, 6L 2L, 3L, 6L or 7L
    3-1/2 89 30056-56L — — — — 2L, 6L 2L, 3L, 6L or 7L
    3-5/8 92 30058-58L — — 3 76.2 2L, 6L 2L, 3L, 6L or 7L
    3-3/4 95 30060-60L 3-1/2 85.7 — — 2L, 6L 2L, 3L, 6L or 7L
    3-7/8 98 30062-62L — — — — 2L, 6L 2L, 3L, 6L or 7L
    4 102 30064-64L — — — — 2L, 6L 2L, 3L, 6L or 7L
    4-1/8 105 30066-66L — — 3-1/2 85.7 2L, 6L 2L, 3L, 6L or 7L
    4-1/4 108 30068-68L 4 95.3 — — 2L, 6L 2L, 3L, 6L or 7L
    4-3/8 111 30070-70L — — — — 2L, 6L 2L, 3L, 6L or 7L
    4-1/2 114 30072-72L — — — — 2L, 6L 2L, 3L, 6L or 7L
    4-5/8 118 30074-74L — — 4 95.3 2L, 6L 2L, 3L, 6L or 7L
    4-3/4 121 30076-76L 4-1/2 108.0 — — 2L, 6L 2L, 3L, 6L or 7L
    5 127 30080-80L — — — — 2L, 6L 2L, 3L, 6L or 7L
    5-1/2 140 30088-88L — — — — 2L, 6L 2L, 3L, 6L or 7L
    6 152 30096-96L — — — — 2L, 6L 2L, 3L, 6L or 7L

    WARRANTY

    LENOX warrants to the original owner that its products are free from defects in material and workmanship for the following periods from the date of the original purchase: Hand Tools are warranted for the anticipated life of the tool; torches and torch accessories are warranted for three years. Please provide proof of date of purchase when making claim. All other products are covered under our manufacturer’s warranty which guarantees the products to be free from defects in material and workmanship for a period of 90 days. This warranty does not apply to product that has been damaged as a result of improper maintenance, accident or other misuse, or which fails to operate due to normal wear and tear. This warranty is void if the product is repaired or modified in any way by anyone other than LENOX. LENOX makes no other warranties, express or implied, concerning the product or the merchantability or fitness thereof for any purpose. In no event shall LENOX be liable for incidental or consequential damages.
