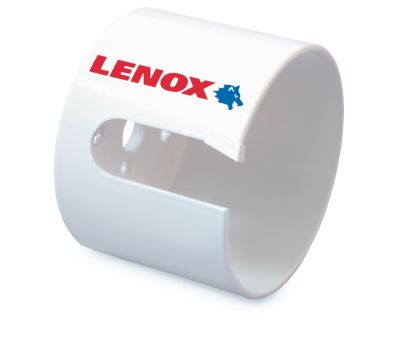

    ONE TOOTH® ROUGH WOOD HOLE CUTTER

    ONE TOOTH® ROUGH WOOD
    HOLE CUTTER

    Drills faster than self-feed bits

    LONG LASTING
    High speed steel tooth provides long tool life

    CUTS FAST / LOW TORQUE
    Designed to run at high speeds with very little torque

    DURABLE WOOD CUTTING TOOL
    Cuts wet, frozen, pressure-treated and hard wood without binding

    EASY PLUG REMOVAL
    Patented design allows easy plug removal

    CUTS AT AN ANGLE
    Unique design provides the ability to cut at an angle

    USE STANDARD ARBOR OR SNAP-BACK™ ARBOR
    For optimal performance, a 10mm stubby spade bit with arbor is recommended

    Specifications

    1 PER PACK CUTTER SIZE CUTTING DEPTH ApplicationUSE ARBOR
    PROD NO   IN MM IN MM  SNAP-BACKSTANDARD
    25422-22HC 1-3/8 35 2 50.8 25MM (1") pipe & lock installation 2L 2L
    25434-34HC 2-1/8 54 2 50.8 38MM (1-1/2") pipe & lock installation 2L 2L
    25436-36HC 2-1/4 57 2 50.8 38MM (1-1/2") pipe & 45°/90° bend couplings 2L 2L
    25441-41HC 2-9/16 65 2 50.8 51MM (2") pipe 2L 2L
    25444-44HC 2-3/4 70 2 50.8 51MM (2") pipe & 45°/90° bend couplings 2L 2L
    25454-54HC 3-3/8 86 2 50.8 76MM (3") duct pipe & bendable duct pipe 2L 2L
    25456-56HC 3-5/8 92 2 50.8 76MM (3") pipe 2L 2L
    25464-64HC 4 102 2 50.8 76MM (3") pipe & coupling & dryer vent 2L 2L
    25469-69HC 4-5/16 109 2 50.8 102MM (4") duct pipe & bendable duct pipe 2L 2L
    25474-74HC 4-5/8 117 2 50.8 102MM (4") pipe 2L 2L
    25480-80HC 5 127 2 50.8 102MM (4") pipe & coupling 2L 2L
    25310-SB38 — — — — 10MM (3/8") stubby spade bit — —
    25312-DIAF1 — — — — Diamond file for re-sharpening — —

    WARRANTY

    LENOX warrants to the original owner that its products are free from defects in material and workmanship for the following periods from the date of the original purchase: Hand Tools are warranted for the anticipated life of the tool; torches and torch accessories are warranted for three years. Please provide proof of date of purchase when making claim. All other products are covered under our manufacturer’s warranty which guarantees the products to be free from defects in material and workmanship for a period of 90 days. This warranty does not apply to product that has been damaged as a result of improper maintenance, accident or other misuse, or which fails to operate due to normal wear and tear. This warranty is void if the product is repaired or modified in any way by anyone other than LENOX. LENOX makes no other warranties, express or implied, concerning the product or the merchantability or fitness thereof for any purpose. In no event shall LENOX be liable for incidental or consequential damages.
